SS-1000DC
SQUEEGEE SHARPENER
Model：
SS-1000DC
Use to：
Various kinds of scraper handle with scraping grinding, to achieve a straight and sharp scraping edge.
Characteristic：
1,Automatic model, grinding head motor drive, left and right travel rate is stable, advanced linear slide running, stable and smooth, high flatness.
2,Grinding wheel motor, speed can be adjusted high, low speed, stable travel without shaking, good grinding quality. Grinding depth and Angle can be digitally adjusted on the man-machine screen.
3,Fast and stable scraping grip, adjustable opening, suitable for a variety of specifications scraping, can be used for Angle grinding.
4,Suction function, can absorb debris, keep the working environment clean.
|
1、Grinding Mechanism |
|
|
Grinding Stroke |
10- 1000mm |
|
Polishing Rate |
1- 200mm/sec adjustable |
|
Grinding Angle |
0- 45° adjustable |
|
Grinding Wheel Speed |
500-2800rpm（adjustable） |
|
Grinding Wheel Type |
Aluminum-based electroplated diamond grinding wheel φ150mmx45mm(Wheel Width) or Abrasive Belt Wheel |
|
Grinding Motor |
REXMAC |
|
2、Squeegee Institutions |
|
|
Squeegee Thickness |
9-40mm |
|
Squeegee Outcrop Length |
≥12mm
|
|
Squeegee Height |
55- 95mm |
|
Scraping Gum Machine Width |
≤60mm |
|
Squeegee Even Higher Overall Clamp |
85-125mm |
|
3、Power＆ Machine Appearance |
|
|
Vacuum Cleaner |
with automatic dust collection function |
|
Power Supply |
380V、3PH、Rated Power：3KW；Real Power：2KW |
|

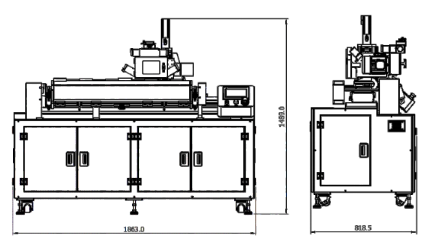

Physical Dimension |
L1863*W818*H1489mm |
|
Machine Weight |
about 750KG |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
