VIM-18
VACUUM INK MIXER
Model：
VIM-18
Use to：
The material is vacuumed.
Characteristic：
1,Stable operation, digital display operation.
2,Ink can clamping, easy to operate.
3,Vacuum removal of bubbles, ink, resin curing, no bubble hole in the hole.
4,Specially designed stirring knife, ink stirring more average.
|
1、Container Size |
|
|
Stirring Capacity |
1- 5KG |
|

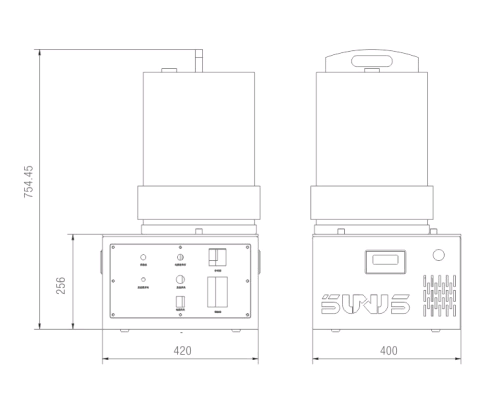

Dimensions |
L420*W400*H754mm |
|
The Size Of The Ink Tank Can Work |
diameter Φ70- Φ180，height 100- 240mm |
|
Vacuum Chamber Volume |
25L |
|
Vacuum Chamber Wall Thickness |
8mm |
|
Total Weight |
38KG |
|
2、Workings |
|
|
Mixing Method |
The ink jar rotates (clockwise unidirectional operation)，stirring rod remaining stationary Intermittent stirring mode (time-adjustable) is available as an optional setting |
|
Stirring Speed |
0- 67.5RPM adjustable |
|
Mixing Time |
0- 600min arbitrarily settable |
|
Stirring Motor Power |
Single-phase AC220V 840W |
|
3、Vacuum Parameters |
|
|
Vacuum PUMP Parameters |
Piston-type，Flow rate 180L/min，Voltage AC220V，Power 400W |
|
Maximum Vacuum Pressure |
95Kpa |
|
Vacuum Suction Time |
working pressure 0- 85Kpa ＜70s，ultimate pressure0-95Kpa 140s |
|
Choose A Vacuum Breaker |
After mixing completion, optional vacuum maintenance or vacuum breaking |
|
4、Material |
|
|
Body Shell |
Stainless steel 304 |
|
Stirring Platform |
Stainless steel 304 |
|
Stir Bar |
Stainless steel 304 |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
