VPV-900FA
AUTOMATIC VERTICAL VACUUM PRINTER
Model：
VPV-900FA
Use to：
Suitable for: carrier board, AI server board, TGV glass substrate, HLC board, PCB and other high density holes, high aspect ratio double-sided back drilling, through hole, blind hole plugging operations.
Characteristic：
1、Paired with a high vacuum automatic ink supply device and automatic ink coating before scraping, it is particularly suitable for large-scale continuous production.
2、No need to specialize in making screens and processing pads.
3、No dependence on operator skills, simple training can be employed.
4、Can produce ultra-high aspect ratio version, ≥60:1.
|
1、Substrate parameters |
|
| Workable board size | Max：24.5''x32.5'' Min：10''x10'' |
| Workable board thickness | 0.2mm－8mm, weight＜10KG |
| Minimum margin | 12mm |
| Plug hole through hole diameter | 0.075-2.0mm No voids or dents |
| Maximum aspect ratio(sheet thickness: aperture) | 80：1 |
| Plug hole aperture and aspect ratio | ≧0.05mm ( 3:1) No voids or dents |
| 2、Function Parameter | |
| Plug stroke | 0－850mm |
| Plug running speed | 1－100mm/s |
| Plug pressure | 10－200kgf |
| Shaving head running speed | 1－300mm/s |
| Shaving head pressure | 10－160kgf |
| Working vacuum | selectable 30~20000Pa |
| Ultimate vacuum | 20Pa |
| 3、Operation and peripherals | |
| Control method | Button Control and Human-Machine Interface Operation |
| Mode of operation |
Switchable Mode (1) Automatic: Selectable single-piston, dual-piston, or single-action cycle (2)Manual Mode: Independent Actuation |

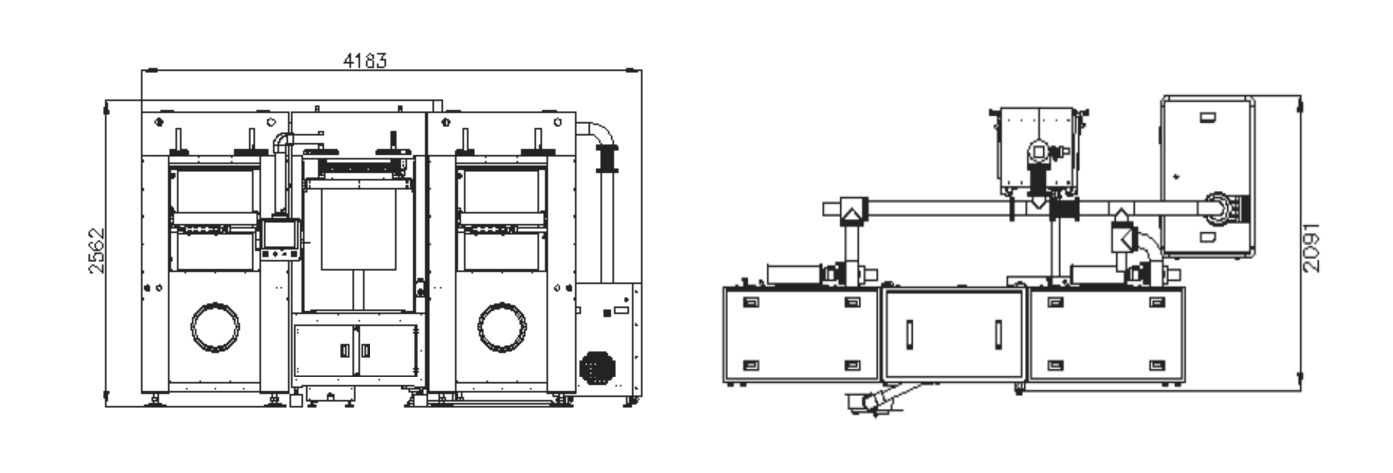

| Safety device | Safety Light Curtain Protection |
| Power requirements | 380V、3PH、Power 18KW |
| Air pressure demand | 7- 8kg/cm²，flow 10L/min |
| 4、Appearance weight | |
| Body material | Q235A Anticorrosion Treatment |
| Appearance sheet metal | Stainless steel |
| Dimensions | L5343*W2959*H2699mm |
| Net weight | 4300KG |
| Notice: Due to product model variations and ongoing technical modifications, device dimensions and configurations may deviate from this specification document. This document serves pre-contract reference only; final specifications shall be governed by signed contractual agreements | |
