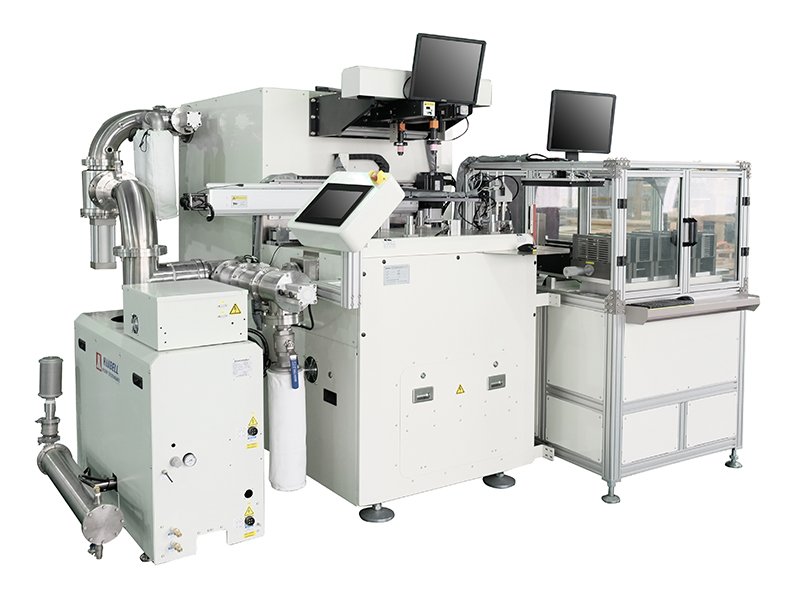

CAV-600
CCD AUTOMATIC VACUUM PRINTER

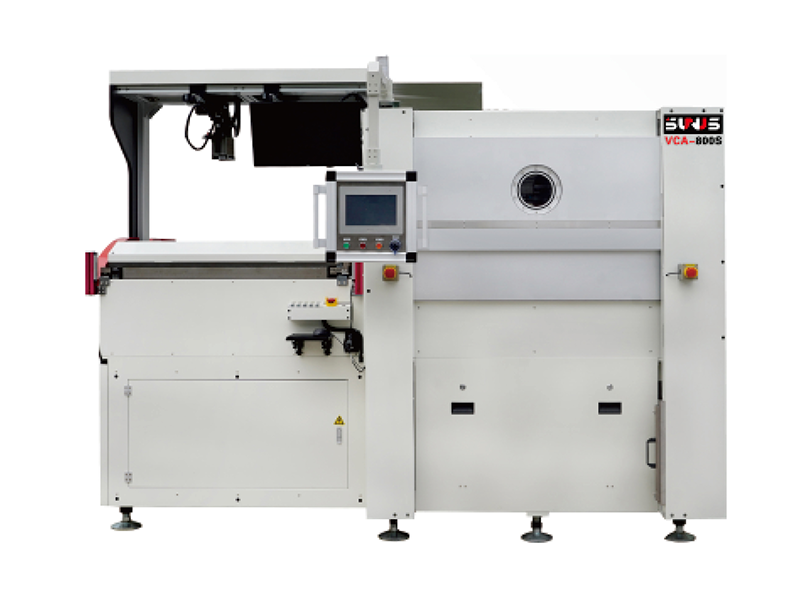

VCA-800S
CCD ALIGNMENT SINGLE TABLE VACUUM PRINTER
Model：
VCA-800S
Use to：
SUITABLE FOR FC-C SP, SLP, TGV Glass Substrate, HDI, IC PACKAGING AND OTHER RESIN, GREEN OIL, OPPERPASTE, SILVER PASTE HIGH-PRECISION VACUUM PLUG HOLE.
Characteristic：
1, CCD automatic alignment.
2,Innovative design of automatic plate clamp/scraper parallel & constant pressure system.
3,Innovative design of the net bottom automatic cleaning system.
|
1、Printed Board Specifications |
|
|
Board Thickness |
Max:5mm Min:0.4mm |
|
Board Size |
Max:625*725mm Min: 350*350mm |
|
Plug Through The Aperture ability |
0.075-2.0mm(40:1) No voids or dents |
|
Plug Laser Via&ability |
0.05-0.5mm(5:1) No voids or dents |
|
2、Specification Of Machine |
|
|
Printing Speed |
0- 600 mm/sec adjustable |
|
Printing Pressure |
20- 200kgf adjustable |
|
Vertical Angle Of Squeegee |
±15° |
|
Scraping Stroke |
0-780mm adjustable（Digital Control） |
|
Printing Precision |
0.02mm(single panel to repeat) |
|
Working Height |
1150±50mm |
|
Frame Size |
Max:1100*1100mm Min:900*900mm(Grid Framework Height>4mm) |
|
Table Vacuum Area |
905*960mm |
|
Work Vacuum |
40-120pa(Residual pressure in the vacuum printing chamber) Note:1 atm ≡ 101.325 kPa |
|
Ultimate Vacuum |
10pa(Residual pressure in the vacuum printing chamber) |
|
Capacity |
60-120PNL/Hours (varies depending on product type) |
|
Set- up Time |
20-30min |
|
3、Electrical Equipment |
|
|
Power |
AC380V、3PH、Power 18KW、Actual Operation 8KW |
|
Cooling Water |
5-15℃、flow≥10L/min |
|
Compressed Air |
7- 8kg/cm² 、flow≥10L/min |
|
4、Equipment |
|
|
Weight |
Approximately 6900kg |
|
Outward Appearance |
Vacuum special paint |
|
Size |
Approximately L3130*W3400*H2340mm |
|
5、CCD Specifications |
|
|
Quantity |
4 |
|
Resolution |
640*480 |
|
Effective Field Of View |
17*17mm |
|
Resolution |
15-17um/pixel |
| CCD Seeker Pitch Size | Max:630*730mm Min:300*300mm |
|
6、CCD Alignment Mode |
|
|
Locate |
Initial edge-aligned centering, followed by CCD-based positioning |
|
Positioning Accuracy |
±0.005mm |
|
Registration Time |
≤1sec(Higher precision settings,Longer processing time) |
|
Registration Target Demand |
Recommended Target φ1-2mm(Usable range:0.5~4mm) |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
