CVD-3000
CENTRIFUGEL VACUUM DEFOAM
Model：
CVD-3000
Use to：
It is suitable for centrifugal defoaming of resin, solder paste, silver paste, ink and other high viscosity materials. It can be used with our VPV-900 vertical plugging machine.
Characteristic：
The equipment adopts high-speed centrifugal + vacuum method to separate the bubbles in the material by centrifugal force. When the material is rotated at high speed in the centrifugal defoaming machine, the centrifugal force is generated, which separates the material and the bubbles in it and finally achieves the role of defoaming.
|
Model |
Function parameter |
|
Defoaming method |
Vacuum Centrifugal Rotary Defoaming |
|
Maximum defoaming capacity |
500g*6pcs |
|
Rotating speed |
300-1000rpm/3groups (Human-Machine System Configuration) |
|
Defoaming time range setting |
0-30min/3groups (Human-Machine System Configuration) |
|
Vacuum degree |
40pa |
|
Voltage |
Single-phase 220V with Grounding Wire |
|
Rated power |
Rated Power1.9KW；Actual Operation 1.5KW |
|
Compressed air demand |
6- 8kgf/cm²、flow 2L/min
|
|
Machine Weight |
530KG |
|

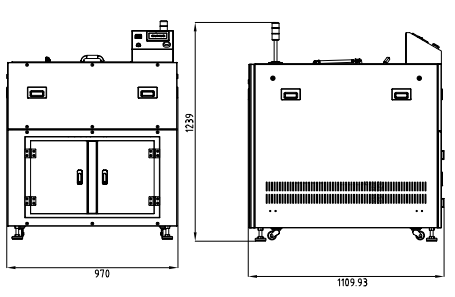

Machine size |
L1110*W970* H1239mm |
|
Machine appearance |
Baked Enamel Ivory White |
| Due to product updates, the product specifications in this catalog are subject to the latest physical products. | |
