CAV-600
CCD AUTOMATIC VACUUM PRINTER
Model：
CAV-600
Use to：
It is suitable for filling metal colloid in semiconductor chip production process, such as vacuum filling of copper glue and silver glue.
Characteristic：
1,CCD automatic alignment system.
2,Automatic loading and unloading system.
3,The net bottom automatic cleaning system.
4,Scraper automatic parallel, constant pressure mechanism.
|
Project |
Details |
Function Parameters |
|
Board Specifications |
Types of processed products |
Applicable to vacuum hole filling operations for resin, copper paste, and silver paste on rigid/flexible PCB boards, including through-hole, blind via, back-drilled hole plugging, and high aspect ratio resin hole plugging. |
|
Assignment style |
Capable of operating through stencil under both vacuum and atmospheric pressure conditions |
|
|
Board Thickness |
Max:3.0mm Min:0.1mm |
|
|
Board Size |
Max:300*300mm Min:50*150mm |
|
|
Plug hole blind hole maximum depth ratio |
8:1 No voids or dents |
|
|
Squeegee Function |
Hole speed |
0~600 mm/sec adjustable |
|
Plug hole printing pressure |
1- 200KG adjustable |
|
|
Plug hole scraper angle |
±15° |
|
|
Available squeegee thickness |
10mm/20mm/35mm |
|
|
Scraper stroke |
0~318mm adjustable |
|
|
Plug hole scraping drive |
Servo motor with timing belt drive |
|
|
Plug hole scraping method |
Single Doctor-Blade Ink Coating Printing |
|
|
Plug hole scraping guide |
Double Rail |
|
|
Plug hole alignment accuracy |
≤0.01mm |
|
|
Mesh Base Specifications |
Plug hole scraping direction |
Front-facing control panel with reciprocating doctoring movement |
|
Frame Size |
Max:W650*D600mm Min:W550*D500mm（Grid Framework Height＞4MM） |
|
|
Frame thickness |
30~40 mm |
|
|
Stencil fixation |
Four-Point Pneumatic Clamping with Two-Point Mechanical Gripping |
|
|
CCD Specifications |
Net Block Rise |
0~350 mm |
|
Quantity |
2 |
|
|
Resolution |
4.7um/pix |
|
|
Effective field of vision |
15*10mm |
|
|
CCD indexing hole size |
Max:W160*D260mm Min:W40*D100mm |
|
|
CCD Alignment Mode |
Positioning |
UVW Alignment Platform |
|
Positioning accuracy |
±0.005MM |
|
|
Alignment time |
≤1s |
|
|
Alignment target requirements |
1mm- 4mm |
|
|
External Device Specifications |
Power supply |
AC380V、3PH、Neutral & Ground Wire Provisions、Power 18Kw、Power Consumption 7 kWh/h |
|
Cooling water |
5-15℃，flow≥10L/min，Water Pressure 3- 4KG Connection to 1" PVC Rigid Pipe with Quick Coupling |
|
|
Compressed air |
7- 8 kg/cm²、flow≥10L/min，Connection to 1/2" Rigid Pipe with Quick Coupling |
|
|
Vacuum pump group hot exhaust |
Pipe Diamete200mm,Exhaust Ventilation Volume6-10CMM |
|
|
Temperature and humidity |
22±2℃，50%±5，Cleanroom Class: Class 10,000 |
|
|
Appearance & Weight |

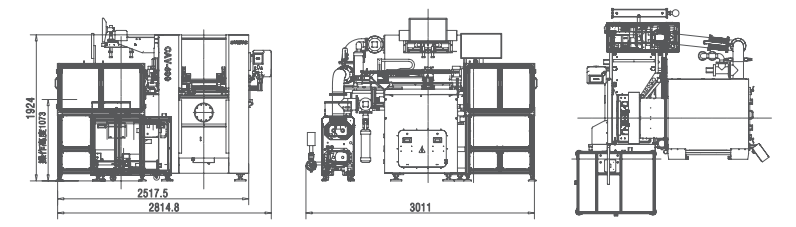

Equipment dimensions |
L3011*W2814*H2143 mm |
|
Device body weight |
5006KG |
|
|
Loading and unloading mechanism weight |
370KG |
|
|
Vacuum pump set weight |
590KG |
|
|
Total weight of equipment |
5966KG |
|
|
Notice: Due to product model variations and ongoing technical modifications, device dimensions and configurations may deviate from this specification document. This document serves pre-contract reference only; final specifications shall be governed by signed contractual agreements |
||
