DVP-800A
VERTICAL DUPLEX SCREEN PRINTER
Model：
DVP-800A
Use to：
Class carrier board, HDI, carrier board, PCB solder resistant printing operation.
Characteristic：
1、Double-sided synchronous printing operation changes the existing printing and printing operation mode, and greatly saves cost and land occupation.
2、The scraper seat adopts an openable design, making it easy to disassemble and replace the scraper blade.
3、The net loading method adopts the design of direct extraction up and down, which saves the time of net erection.
4、The ink reservoir is designed with a quick-release test to facilitate ink replacement and maintenance.
5、The front end can be connected to a fully automatic level plug hole machine, and the rear end can be connected to a suspended oven, forming an automated operation plan
| 1、Substrate specifications | |
| Printable substrate thickness | MAX：5mm，MIN：0.2mm |
| Printable substrate size | MAX：610mm×710mm，MIN：350mm×350mm |
| CycleTime | Approximately 1.5-2 tablets/min (varies depending on product type) |
| 2、Scratching function | |
| Printing scraper mechanism | High rigidity scraper seat |
| Printing pressure (constant pressure pneumatic adjustable) | 0~100kgf(0-8kgf/cm2) |
| Scratching transmission | Servo motor+lead screw |
| Printing speed | 0~400 mm/sec |
| Scratching stroke | 0~940 mm adjustable |
| Scraper adjustment angle | 20° to 45° adjustable |
| Scraper opening and closing distance | 40mm |
| Scratching method | Front and rear dual blade synchronous printing operation |
| 3、 Mesh holder specifications | |
| Screen size | MAX：960×1300 mm MIN：800×1300 mm |
| Fixed online version | Fixed pressure at 2 points, mechanically fixed at 1 point |
| Mesh frame thickness | 30~35mm |
| Off board gap | 0~50mm mechanically adjustable |
| Mesh frame displacement inch function | Independent displacement in X direction ± 5mm |
| Scratching direction | Scraper printing up and down |
| Parallelism between feeding mechanism and scraper seat | ±0.05mm |
| 4、 Loading mechanism | |
| Printing position repetition positioning accuracy | ±0.005mm |
| Working height | 1100±50 mm |
| Part number scanning function | QR code scanning (optional) |
| Parameter upload function | Equipped with OPCUA interface for uploading machine parameters to the system (optional) |
| CCD Specifications | |
| Equipped with anomaly recording function | Abnormal automatic recording |
| Control method | Touch screen control |
| operation | Switching (1) semi-automatic: single action for one cycle, (2) manual: function independent action |
| 6、 Operations and peripherals | |
| Safety protection devices | Safety grating protection for feeding mechanism entry and exit and scraping seat lifting |
| source | source |
| Air pressure | 6－8KG/CM2、flow 10L/MIN |
| 7、 Appearance weight | |

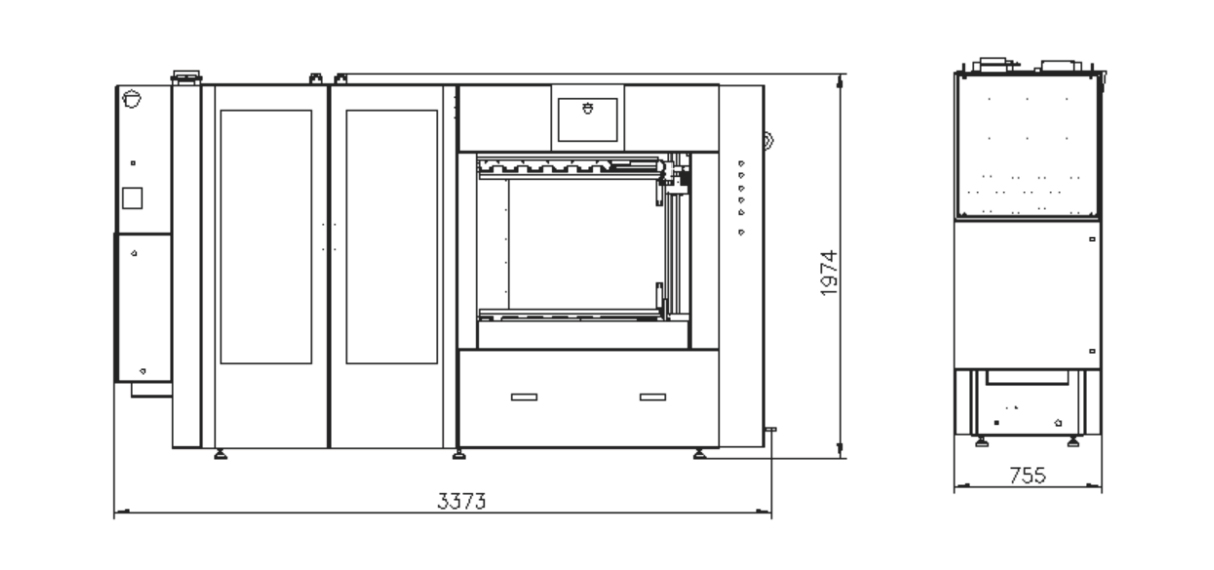

| size | L3373×W755×H1974mm |
| Appearance material | Baking paint&Stainless steel 304 (optional) |
| Net weight | 1300 kg |
| Attention: Due to different product models and technological improvements, there may be discrepancies between the actual size and configuration of the equipment and this specification. Therefore, this specification is for reference only before the contract, and specific specifications shall be subject to the contract. | |
