STM-1050
SIGLE-TABLE SEMI-AUTOMATIC SCREEN PRINTER
Model：
STM-1050
Use to：
Solder proof, plug hole, text, line, carbon film, resin plug hole, film, liquid crystal display glass printing.
Characteristic：
1.High stability.
2,High operation convenience.
3,High precision.
|
1、Board Specifications |
|
|
Board Thickness |
Max:8mm Min:0.3mm |
|
Board Size |
Max:820*710mm Min:300*300mm |
|
Cycle Time |
about 3-5PNL/min |
|
2、Squeegee Function |
|
|
Printing Scraper |
High-Rigidity Blade Holder |
|
Printing Pressure |
20- 180kgf(0- 8kaf/cm² ) |
|
Squeegee Drive |
Servo motor with timing belt drive |
|
Printing Speed |
1- 600mm/s |
|
Squeegee Stroke |
0- 830mm adjustable |
|
Horizontal Angle |
±5° adjustable |
|
Blade Angle Adjustment |
±40° adjustable |
|
Blade To Adjust The Distance |
0- 50mm |
|
Blade Lift Height |
25mm |
|
Scraping Seat Lifting Device |
Lifting Height 40mm(Quick Screen Plate Change) |
|
Squeegee Way |
Single-Blade Ink Coating Printing or Double-Blade Solder Mask Printing (Optional) |
|
3、Network Block Specifications |
|
|
Screen Size |
Max:1200×1200mm Min:1000x1000mm(Screen Frame Height＞4mm) |
|
Box Seat Lift Positioning Accuracy |
±0.02mm |
|
Screen Fixed |
2-Point Pneumatic Fixation, 2-Point Mechanical Fixation |
|
Screen Frame Thickness |
30- 40mm |
|
Net Frame Lifting Height |
330mm |
|
Printing Pitch |
5- 25mm（electric adjustable） |
|
Clearance From The Version |
0- 25mm（electric adjustable） |
|
Shading Function Scrape Ink Deposits |
Dot Elimination Mechanism for Dot Screen Printing(Optional) |
|
The Frame Inching Displacement |
X、Y direction ±5mm(Optional) |
|
Squeegee Direction |
Before and After Scraper Printing |
|
4、Printing Table |
|
|
Printing Table Size |
1000×1000mm |
|
Table Flatness |
±0.05mm |
|
Mesa Trimming |
X、Y、Y direction ±5mm |
|
Working Height |
950±50mm |
|
5、Operation And Peripherals |
|
|
Control Methods |
Touchscreen control |
|
Workings |
Switching Mode:(1) Automatic: Single cycle operation. |
|
Security Devices |
Table Safety Guard Rail + Frame Lifting Mechanical Electric Control Protection (Optional)
|
|
Power Supply |
380V、3PH、Rated Power：2.5KW；Real Power：1.8KW |
|
Pneumatic |
6-8kgf/cm² 、flow 10L/min |
|

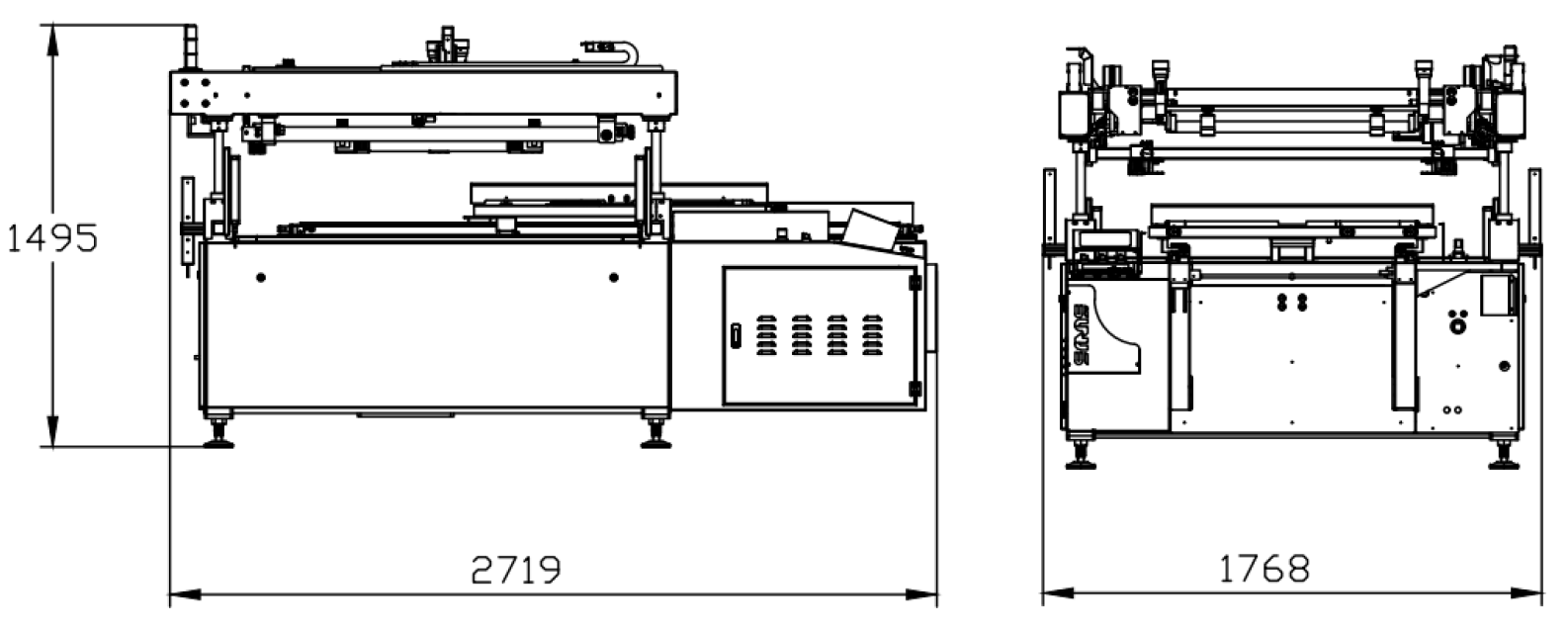

6、Appearance＆ Weight |
|
|
Size |
L2719×W1768×H1495mm
|
|
Net Weight |
1450kg |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
