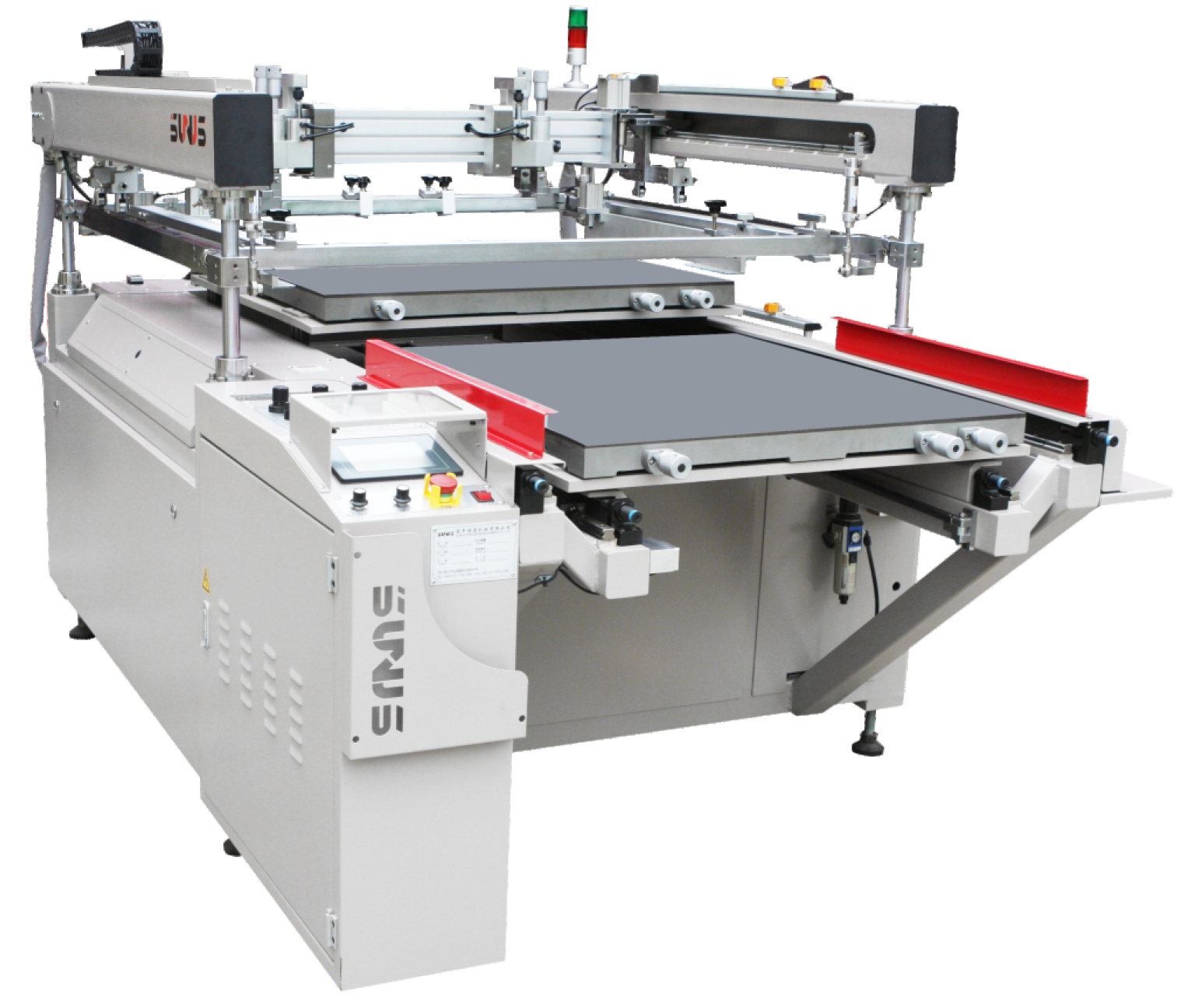

DTM-1010
DOUBLE-TABLE SEMI-AUTOMATIC SCREEN PRINTER
Model：
DTM-1010
Use to：
Solder proof, plug hole, text, line, carbon film, film, touch screen, LCD printing.
Characteristic：
1,High precision.
2,High operation convenience.
3.High stability.
4.High productivity.
|
1、 Board Specifications |
|
|
Board Thickness |
MAX: 8mm MIN: 0.3mm |
|
Board Size |
MAX:710 mm x 810 mm MIN: 300 mm x 300 mm |
|
Cycle Time |
about 4- 6pieces/min |
|
2、Squeegee Function |
|
|
Printing Scraper |
High-Rigidity Blade Holder |
|
Printing Pressure |
20- 180kgf |
|
Squeegee Drive |
AC Motor, Timing Belt |
|
Printing Speed |
1- 600 mm/sec |
|
Squeegee Stroke |
0- 830mm adjustable |
|
Horizontal Angle |
±5° adjustable |
|
Blade Angle Adjustment |
±40° adjustable |
|
Blade To Adjust The Distance |
0- 50mm |
|
Blade Lift Height |
25mm |
|
Scraping Seat Lifting Device |
Lifting Height 40mm(Quick Screen Plate Change) |
|
Squeegee Way |
Single-Blade Solder Mask Printing or Double-Blade Solder Mask Printing (Optional) |
|
3、Network Block Specifications |
|
|
Screen Size |
MAX:1200×1200 mm MIN:1000x1000mm(Screen Frame Height＞4mm) |
|
Box Seat Lift Positioning Accuracy |
±0.02mm |
|
Net Frame Lifting Height |
330mm |
|
Screen Fixed |
2-Point Pneumatic Fixation, 2-Point Mechanical Fixation |
|
Screen Frame Thickness |
30- 40mm |
|
Net Frame Lifting Height |
330mm |
|
Printing Pitch |
5- 25mm Mechanically Adjustable |
|
Clearance From The Version |
0- 25mm Mechanically Adjustable |
|
Shading Function Scrape Ink Deposits |
Dot Elimination Mechanism for Dot Screen Printing(Optional) |
|
The Frame Inching Displacement |
X、Y direction ±5mm(Optional) |
|
Squeegee Direction |
Before and After Scraper Printing |
|
4、Specification Table |
|
|
Printing Upper Table |
W1000×H1000mm |
|
Printing Lower Table |
W1000×H900mm |
|
Table Flatness |
±0.05mm |
|
Mesa Trimming |
X、Y 、Y direction ±5mm |
|
Working Height |
950±50mm |
|
5、Operation And Peripherals |
|
|
Control Methods |
Touchscreen control |
|
Workings |
Switching Mode:(1) Automatic: Single cycle operation. |
|
Security Devices |
Table Safety Guard Rail + Frame Lifting Mechanical Electric Control Protection (Optional) |
|
Power Supply |
380V、3PH、electricity consumption 2.1KW |
|
Pneumatic |
6-8KGcm² 、flow 20L/min |
|
6、Appearance＆ Weight |
|
|

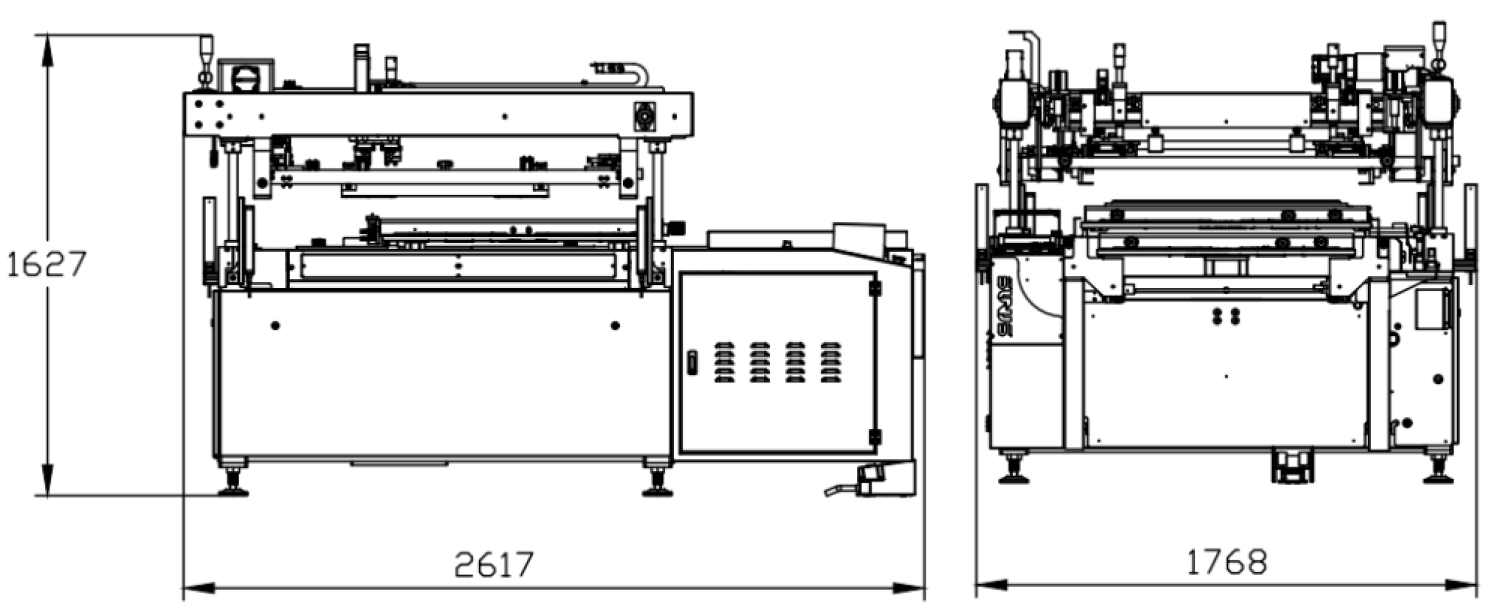

Size |
L2617×W1768 x H1627 (mm) |
|
Net Weight |
1650kg |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
