CSM-85P
SEMI MATIC SCREEN PRINTING MACHINE
Model：
CSM-85P
Use to：
Cut plate welding, plug hole printing.
Characteristic：
1,CCD positioning accuracy ±0.005mm, positioning speed within 1SEC can be completed positioning.
2,PC version before printing CCD alignment, easy to operate.
3,Ltaly MOTOVARIO motor and other well-known manufacturers of components.
4,Mitsubishi inverter, Fuji servo control system, THK precision slide, OMRON controller.
5,CCD automatic alignment adjustment in the production process, without manual intervention, can maximize the production manpower, to achieve automated production.
|
1、Board Specifications |
|
|
Board Thickness |
MAX: 5mm MIN: 0.2 mm |
|
Board Size |
MAX: 610 mm x 710 mm |
|
Cycle Time |
about 4- 7pieces/min |
|
2、Squeegee Function |
|
|
Printing Scraper |
High-Rigidity Blade Holder |
|
Printing Pressure |
0- 120kgf(0- 8kaf/cm² ) |
|
Squeegee Drive |
Servo motor with timing belt drive |
|
Printing Speed |
0- 600 mm/sec |
|
Squeegee Stroke |
0- 760mm adjustable |
|
Horizontal Angle |
±5° adjustable (Standard configuration does not include this feature.) |
|
Blade Angle Adjustment |
±50° adjustable |
|
Blade To Adjust The Distance |
0- 35mm |
|
Blade Lift Height |
25mm |
|
Scraping Seat Lifting Device |
Lifting Height 40mm(Quick Screen Plate Change) |
|
Squeegee Way |
Single Blade Ink Coating Printing |
|
3、Network Block Specifications |
|
|
Screen Size |
MAX:1100×1100m MIN900x900mm(Screen Frame Height＞4mm) |
|
The Frame Trim |
X、Y direction ±5mm |
|
Box Seat Lift Positioning Accuracy |
±0.02mm |
|
Screen Fixed |
4-Point Pneumatic Clamping |
|
Screen Frame Thickness |
30- 40mm |
|
Net Frame Lifting Height |
330mm |
|
Printing Pitch |
0- 28mm Numerical Control Adjustment |
|
Clearance From The Version |
0- 30mm Numerical Control Adjustment |
|
Squeegee Direction |
Before and After Scraper Printing |
|
4、Specification Table |
|
|
Table Flatness |
±0.03mm |
|
Precision Reciprocating Table |
±0.005mm |
|
Table Suction And Parallel Blade Bearings |
±0.03mm |
|
Plywood Table |
Single-Side Dual Cylinder Clamping |
|
Suction Table Size |
610x710mm |
|
Table Suction Aperture Size |
φ2mm |
|
Table Suction Hole Spacing |
20×20mm |
|
Working Height |
920±30mm |
|
5、Electric Control Panel |
|
|
Control Methods |
Touchscreen control |
|
Workings |
Automated standalone printing or online-integrated printing with auto-loading/unloading |
|
Security Devices |
The lifting frame is equipped with a safety light curtain |
|
Power Supply |
AC220V、380V、3PH、electricity consumption 7.5KW |
|
Pneumatic |
6-8KGcm² 、flow 20L/min |
|

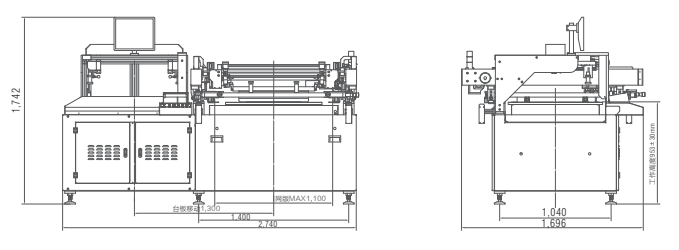

6、Appearance＆ Weight |
|
|
Size |
L2740×W1696 x H1742 (mm) |
|
Net Weight |
2800kg |
|
7、CCD Specifications |
|
|
Quantity |
2 or 4 |
|
Resolution |
640×480 |
|
Effective Field Of View |
10×7.5mm |
|
Resolution |
15- 17um/pixel |
|
CCD Seeker Pitch Size |
MIN: 320*320 MAX:640*640(mm) |
|
8、CCD Alignment Mode |
|
|
Locate |
Initial edge-aligned centering, followed by CCD-based positioning |
|
Positioning Accuracy |
±0.005mm |
|
Registration Time |
≤1sec(Higher precision settings,Longer processing time) |
|
Registration Target Demand |
Recommended Target φ1- 2mm(Available Range:0.5～4mm) |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
