ACD-75
AUTOMATIC SCREEN PRINTER
Model：
ACD-75
Use to：
MiniLED, similar carrier board, high level HDI and other sheet, welding surface, plug hole printing.
Characteristic：
1,CCD automatic alignment, mechanical arm in and out of material.
2,Innovative no weight scraper, scraper automatic calibration design.
3,Double table, table suction, automatic plate clamp, mesh frame displacement and other special design.
4,The discharge can be connected to the automatic suspended tunnel oven.
|
1、Board Specifications |
|
|
Board Thickness |
Max:3.2mm Min:0.2mm |
|
Board Size |
Max:810*710mm Min:350* 400mm |
|
Rate Of Production |
3- 4PNL/min |
|
2、Squeegee Function |
|
|
Squeegee Way |
Double Squeegee Double Lift Net，or Single Squeegee Single Lift Net Mode |
|
Printing Pressure |
20-200kgf Digitally Adjustable (Automatic Squeegee Level Correction) |
|
Squeegee Drive |
Servo Motor + Linear Slide Rail + Timing Belt Drive |
|
Printing Speed |
1- 600 mm/sec Digitally Adjustable |
|
Squeegee Stroke |
0- 780mm adjustable |
|
Horizontal Angle |
±5° adjustable(Standard configuration does not include this feature.) |
|
Blade Angle Adjustment |
±40° adjustable |
|
Blade To Adjust The Distance |
0- 35mm |
|
Blade Lift Height |
25mm |
|
Scraping Seat Lifting Device |
40mm |
|
3、Network Block Specifications |
|
|
Screen Size |
Max:1200*1100m Min:900*900mm(Screen Frame Height＞4mm) |
|
The Frame Trim |
X1,X2,Y1,Y2,±5mm（electric） |
|
Screen Fixed |
Four-Point Pneumatic Clamp |
|
Screen Frame Thickness |
30- 40mm |
|
Base Rise |
350 mm |
|
Printing Pitch |
5- 25mm |
|
Clearance From The Version |
0- 25mm |
|
Squeegee Direction |
Facing the operating surface, the squeegee moves back and forth during printing. |
|
4、Specification Table |
|
|
Table Flatness |
≤0.05mm |
|
Precision Reciprocating Table |
±0.01mm |
|
Countertops And Parallel Blade Bearings |
±0.03mm |
|
Plywood Table |
Printing Plate Clamp |
|
Net Bottom Cleaning Mechanism (Optional) |
Screen Bottom Scraper，Automatic Screen Bottom Cleaning |
|
Working Height |
1050±50mm |
|
5、Electric Control Panel |
|
|
Control Methods |
Touch Screen，Equipped with an Automatic Fault Detection System and Fault Resolution Display |
|
Workings |
Automatic Online Printing |
|
Security Devices |
The frame seat lifting mechanism is equipped with light curtain safety devices and safety support rods at both the front and rear positions |
|
Power Supply |
AC 380V、3PH 5 （Neutral & Ground Wire Provisions）、Rated Power：5KW；Real Power：3KW |
|
Pneumatic |
6~8kg/cm² 、100 L/min |
|
6、Appearance＆ Weight |
|
|

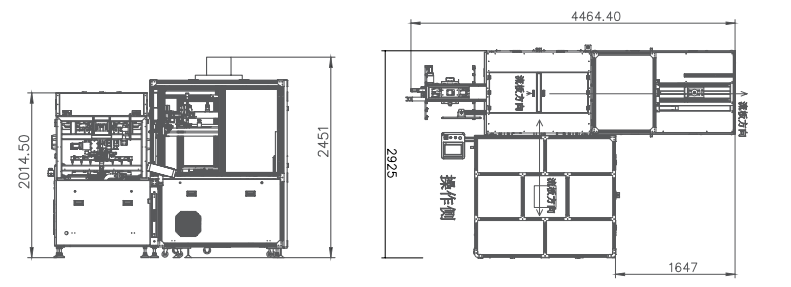

Size |
L4464*W2925*H2451mm |
|
Net Weight |
3800kg |
|
7、CCD Specifications |
|
|
Quantity |
4 |
|
Resolution |
1280×1480 |
|
Effective Field Of View |
14×10mm |
|
Resolution |
2592*1944mm |
|
CCD Seeker Pitch Size |
Max:708*350mm Min:448*85mm |
|
8、CCD Alignment Mode |
|
|
Locate |
Automatic Edge-Centering Positioning and CCD Automatic Positioning，8-Point Clamping Positioning |
|
Positioning Accuracy |
±0.005mm |
|
Registration Time |
≤1sec(Higher precision settings,Longer processing time) |
|
Registration Target Demand |
Available Range of Substrate Targets 1mm~3mm |
|
Due to product updates, the product specifications in this catalog are subject to the latest physical products. |
|
