DSV-1200
DOUBLE-TABLE VACUUM PRINTER
Model：
DSV-1200
Use to：
Suitable for resin hole filling on PCB AI boards, HLC boards, etc., especially suitable for high longitudinal and transverse plug operations.
Characteristic：
1. Single machine can complete the blocking operation, saving manpower.
2. High precision, high operational convenience.
3. Automatic cleaning function at the bottom of the net.
4. Automatic ink addition system.
2. High precision, high operational convenience.
3. Automatic cleaning function at the bottom of the net.
4. Automatic ink addition system.
| Project |
Details |
Function Parameters |
|
Board Specifications |
Substrate thickness |
Max:8mm Min:0.2mm |
|
Substrate size |
Max:725*815mm Min:350*350mm |
|
|
Plug hole through hole diameter
|
0.1mm-2.0mm（No voids or dents） | |
|
Maximum aspect ratio of through hole (plate thickness: aperture) |
40:1(Allows multi-tool operation or bilateral plugging) |
|
|
Plug hole blind aperture and maximum aspect ratio |
0.05mm-0.5mm ( 5:1) No voids or dents |
|
|
Squeegee Function |
Hole speed |
1~500mm/sec adjustable |
|
Plug hole printing pressure |
20- 200kgf （Based on Maximum Intake Air Pressure） |
|
|
Plug hole scraper angle |
±15° |
|
|
Scraper stroke |
0~1000mm adjustable |
|
|
Plug hole scraping drive |
Servo motor with timing belt drive |
|
|
Plug hole alignment accuracy |
0.02mm |
|
|
Plug hole scraping direction |
Front-facing control panel with reciprocating doctoring movement |
|
|
Mesh Base Specifications |
Stencil size |
Max:1100*1300 mm Min:1100*800 mm（Grid Framework Height＞4mm） |
|
Frame thickness |
30~40 mm |
|
|
Stencil fixation |
6-Point Pneumatic Clamping |
|
|
Printing pitch |
0~29mm（Digital Configuration） |
|
|
Board clearance |
0~30mm（Digital Configuration） |
|
|
Tabletop Parameters |
Table alignment adjustment
|
X、Y、Y±5mm（Digital Configuration）
|
|
Horizontal accuracy of tabletop
|
± 0.05mm
|
|
|
Table repeat positioning accuracy
|
± 0.005mm
|
|
|
Platform size
|
1100*850mm
|
|
|
Working height
|
1050 ± 50mm
|
|
|
Vacuum Parameters |
Vacuum degree of homework |
80-120pa(Residual Air Pressure in Operational Vacuum Chamber) Note:1 atm ≡ 101.325 kPa |
|
Equipment noise |
Stable operation ≤80 decibels |
|
|
Operational Efficiency |
Production capacity |
1.5~2pieces/min |
|
Mold change time |
＜35min |
|
|
CCD Parameters |
Quantity |
2 per unit, total 4 units |
|
CCD alignment software accuracy |
± 0.005mm |
|
|
CCD effective field of view
|
14.7*9.8mm | |
|
Target requirements for alignment |
Recommended Target φ1~2mm(Applicable range：0.5 ~ 4mm) |
|
|
External Device Specifications |
Power supply |
AC380V、3PH、Neutral & Ground Wire Provisions、Power 25KW |
|
Cooling water |
5-15℃，flow≥10L/min，Connection to 1" PVC Rigid Pipe with Quick Coupling |
|
|
Compressed air |
6- 8 kg/cm²、flow≥10L/min，Connection to 1/2" Rigid Pipe with Quick Coupling |
|
|
Vacuum pump group hot exhaust |
Pipe Diameter200mm,Exhaust Ventilation Volume 6-10CMM |
|
|
Temperature and humidity |
22±2℃，50%±5，Cleanroom Class: Class 10,000 (Federal Standard 209E) |
|
|
Appearance |

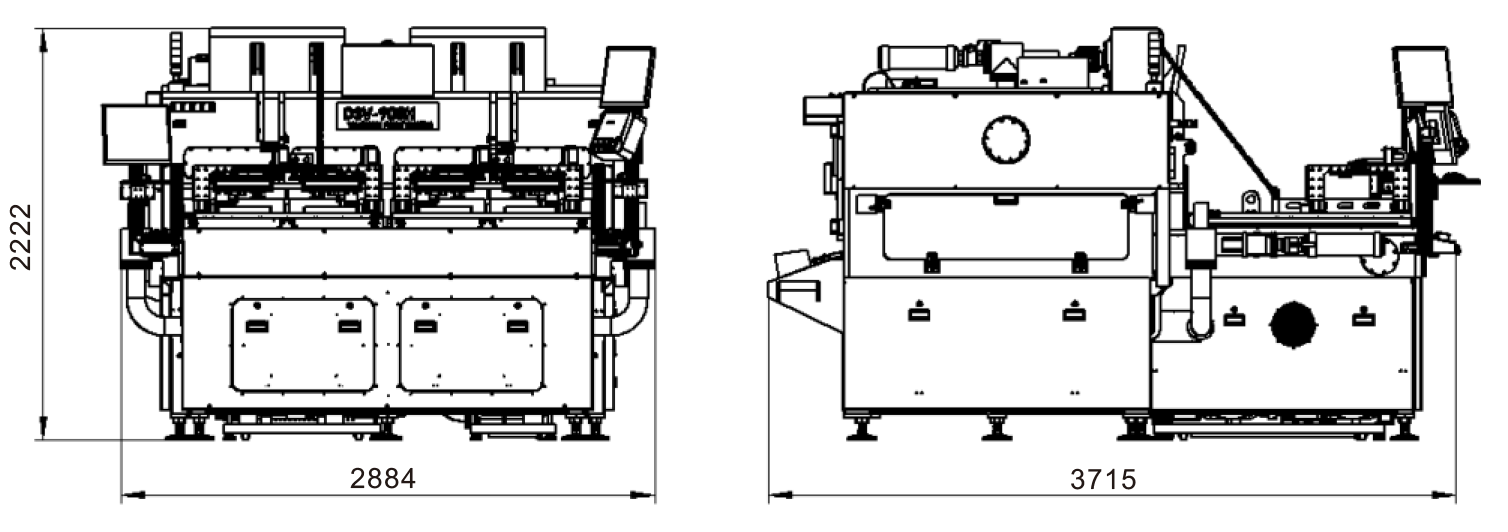

Overall dimensions of the machine |
L3715*W2884*H2222mm |
|
Appearance material |
Vacuum special paint RAL9016 |
|
|
Weight |
Machine body weight |
10000 Kg |
|
Machine vacuum pump set |
630 Kg |
|
|
Total weight of machine
|
10630 Kg | |
|
Installation of floor load-bearing requirements |
≥1.2ton/m² |
|
| Notice: Due to product model variations and ongoing technical modifications, device dimensions and configurations may deviate from this specification document. This document serves pre-contract reference only; final specifications shall be governed by signed contractual agreements | ||
