CCD ALIGNMENT AUTOMATIC VACUUM PRINTER

Model：

CTV-800E

Use to：

It is suitable for high precision vacuum jack hole of resin, TGV glass substrate, green oil, copper paste and silver paste of carrier board, similar carrier board, high order HDI, semiconductor package etc.

Characteristic：

1,The original streamline design, with excellent operation convenience, to achieve automation, data, intelligent production scene.

2,CCD replaces manual to achieve high-precision intelligent alignment.

3,The innovative design of the net bottom automatic cleaning and scraper automatic constant pressure system.

Specifications

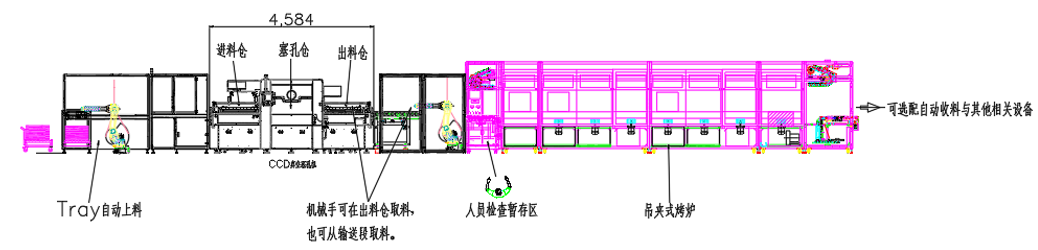

Sizes

Video

1、Printed Board Specifications
Board Thickness	Max:5mm Min:0.4mm
Board Size	Max:625820mm Min: 360360mm
Plug Through The Aperture ability	0.1-2.0mm(40:1) No voids or dents
Plug Laser Via&ability	0.05-0.5mm(5:1) No voids or dents
2、Specification Of Machine
Printing Speed	1- 600 mm/sec（Human-machine adjustable）
Printing Pressure	20- 200kgf（Human-machine adjustable）
Vertical Angle Of Squeegee	±15° adjustable
Scraping Stroke	0-780mm（Human-machine adjustable）
Printing Precision	0.02mm (single panel to repeat)
Working Height	1000±20mm
Frame Size	Max:12001100mm Min:10001000mm(Grid Framework Height>4mm)
Table Vacuum Area	Auto-adjustment based on board dimensions
Work Vacuum	40-120pa(Residual pressure in the vacuum printing chamber) Note:1 atm ≡ 101.325 kPa
Ultimate Vacuum	20pa(Residual pressure in the vacuum printing chamber‌‌)
Capacity	1.5-2.5tablets/min(varies depending on product type)
Set- up Time	5-15min
3、Electrical Equipment
Power	AC380V、3PH、Power Operation32KW、Rating45KW
Cooling Water	5-15℃、flow≥10L/min
Compressed Air	0.6-0.8Mpa、flow50L/min
4、Equipment
Weight	8500kg
Outward Appearance	Stainless steel 304
Size	Approximately L4625W3551H2247mm（containing vacuum pump assembly）
5、CCD Specifications
Quantity	4
Resolution	640*480
Effective Field Of View	12*10mm
Resolution	15-17um/pixel
CCD Seeker Pitch Size	Max:625mm820mm MIN:360mm360mm
6、CCD Alignment Mode
Locate	Initial edge-aligned centering, followed by CCD-based positioning
Positioning Accuracy	±0.005mm
Registration Time	≤1sec(Higher precision settings,Longer processing time)
Registration Target Demand	Recommended Target φ1-2mm(Usable range:0.5~4mm)
Due to product updates, the product specifications in this catalog are subject to the latest physical products.
