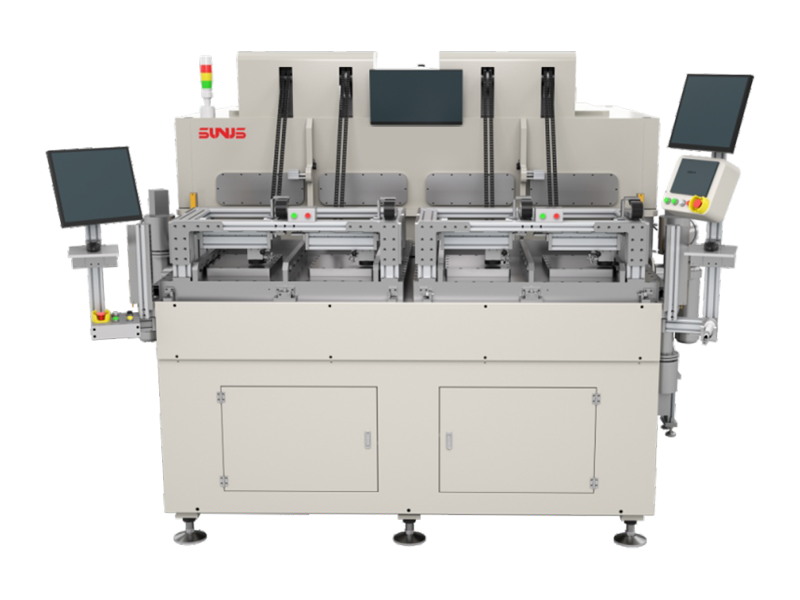

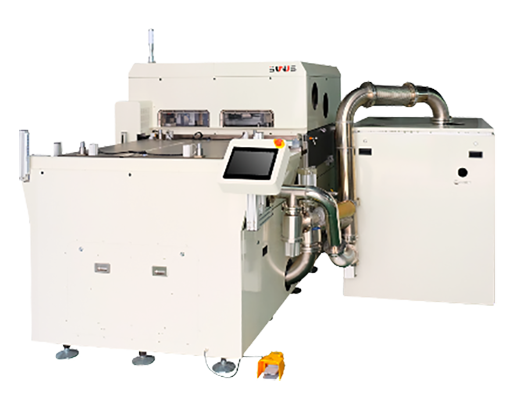

DOUBLE-TABLE VACUUM PRINTER

Model：

DSV-800

Use to：

Suitable for PCB hard and soft board resin, copper glue, silver glue vacuum hole filling, especially suitable for high aspect ratio mass production.

Characteristic：

1,The use of the original double table design, double increase production capacity, compared with a single surface vacuum hole machine in the occupation space, manual configuration, tool materials, energy consumption basically does not increase under the condition, production capacity increased by 1.5-2 times, to create a high return on investment for customers.

2,The equipment operating parameters are set by one click, the common setting unit: jack speed, jack pressure, plate height, jack stroke, etc. are integrated into the man-machine interface, highly standardized data management, reduce the operator's experience dependence, more convenient to use, skilled mold change time ≤30min.

Specifications

Sizes

Video

Project	Details	Function Parameters
Board Specifications	Substrate thickness	Max:8mm Min:0.2mm
	Substrate working size	Max:620720mm Min:250250mm
	Board Thickness	Max:8.0mm Min:0.2mm
	)Maximum aspect ratio of through hole (plate thickness: aperture)	40:1(Allows multi-tool operation or bilateral plugging)
	Plug hole blind aperture and maximum aspect ratio	0.05mm-0.5mm ( 5:1) No voids or dents
Squeegee Function	Hole speed	1~700mm/sec adjustable
	Plug hole printing pressure	20- 200kgf adjustable
	Plug hole scraper angle	±15°
	Scraper stroke	0~780mm adjustable
	Plug hole scraping drive	Front-facing control panel with reciprocating doctoring movement
	Plug hole scraping method	Single Doctor-Blade Ink Coating Printing
	Plug hole alignment accuracy	0.02mm
	Plug hole scraping direction	Front-facing control panel with reciprocating doctoring movement
	Production capacity	‌Standard Plate Dimensions700*600mm，Aspect ratio below 10:1 ，integrated production capacity of 2 sheets/min
	Mold change time	＜35min
Mesh Base Specifications	Stencil size	Max:11001100 mm Min:900900 mm（Grid Framework Height＞4MM）
	Frame thickness	30~40 mm
	Stencil fixation	Four-Point Pneumatic Clamping with Two-Point Mechanical Gripping
	Printing pitch	0~30mm（Electric Regulation）
	Board clearance	0~30mm（Electric Regulation）
Vacuum Specifications‌	Operating vacuum	40-120pa(‌Residual Air Pressure in Operational Vacuum Chamber‌‌) Note:1 atm ≡ 101.325 kPa
	Ultimate vacuum	15pa(‌Residual Air Pressure in Vacuum Printing Chamber‌‌)
	Equipment noise	Stable operation ＜80 decibels
	Main warehouse pumping time	Primary Chamber‌‌≤160s（Pressure Range: 101,325 Pa to 80 Pa）
	Auxiliary warehouse pumping time	Auxiliary Chamber ≤6s（Vacuum Pressure‌‌1000-1500Pa）
External Device Specifications	Power supply	AC380V、3PH、Neutral & Ground Wire Provisions、Power 18KW，Actually 9KW、Power Consumption 10 kWh/h
	Cooling water	5-15℃，flow≥10L/min，Water Pressure 3- 4KG,Connection to 1" PVC Rigid Pipe with Quick Coupling
	Compressed air	7- 8 kg/cm²、flow≥10L/min，Connection to 1/2" Rigid Pipe with Quick Coupling‌ ‌
	Vacuum pump group hot exhaust	Pipe Diamete200mm,Exhaust Ventilation Volume6-10CMM
	Temperature and humidity	22±2℃，50%±5，Cleanroom Class: Class 10,000
	Working height	1100 ± 50 mm

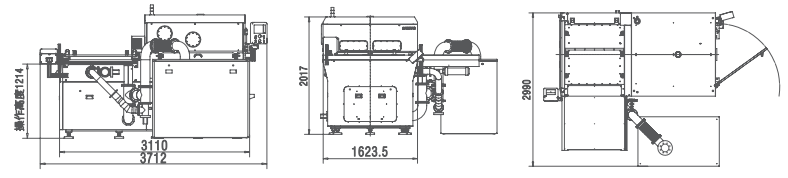

Appearance	Overall dimensions of the machine	L3712W3000H2020mm
	Machine body size	L3712W1666H2020mm
	Machine vacuum pump set	L1550W 980H1236mm
	Appearance material	Vacuum special paint
Weight‌	Machine body weight	Approximately 6920 Kg
	Machine vacuum pump set	Approximately 700 Kg
	Total weight of machine	Approximately 7620 Kg
Notice:‌ Due to product model variations and ongoing technical modifications, ‌device dimensions and configurations may deviate from this specification document‌. This document serves ‌pre-contract reference only‌; final specifications shall be governed by ‌signed contractual agreements
