VACUUM FILTRATION, STIRRING AND FILLING INTEGRATED MACHINE

Model：

VM-100

Use to：

Applicable for resin/ink filtration, vacuum mixing & degassing, and cartridge-type ink barrel filling

Characteristic：

Specifications

Sizes

Video

Project	Details	Function Parameters
Filtration	Container capacity	1-2L
	Filter the smallest particles	10~20um
	Filter traffic	0.1-2L/min


Stir	Mixing capacity	1-2L
	Mixing method	Ink tank rotates unidirectionally clockwise; stirring rod remains fixed
	Stirring speed	0～70RPM adjustable
	Mix time	0－600min arbitrarily settable
	Maximum vacuum pressure	95Kpa
	Vacuum breaking selection	After mixing completion, optional vacuum maintenance or vacuum breaking‌‌




Filling	Filling method	Extrusion
	Filling power	Pneumatic
	Filling volume	10-500g
	Filling time	5- 20s adjustable

Energy Consumption	Power requirement	Single-phase220V，‌Auxiliary Grounding Conductor
	Rated power	490W
	Compressed air demand	7- 8 kg/cm²、flow≥10L/min


Material	Filter chamber	Stainless steel

	Operating platform	Stainless steel

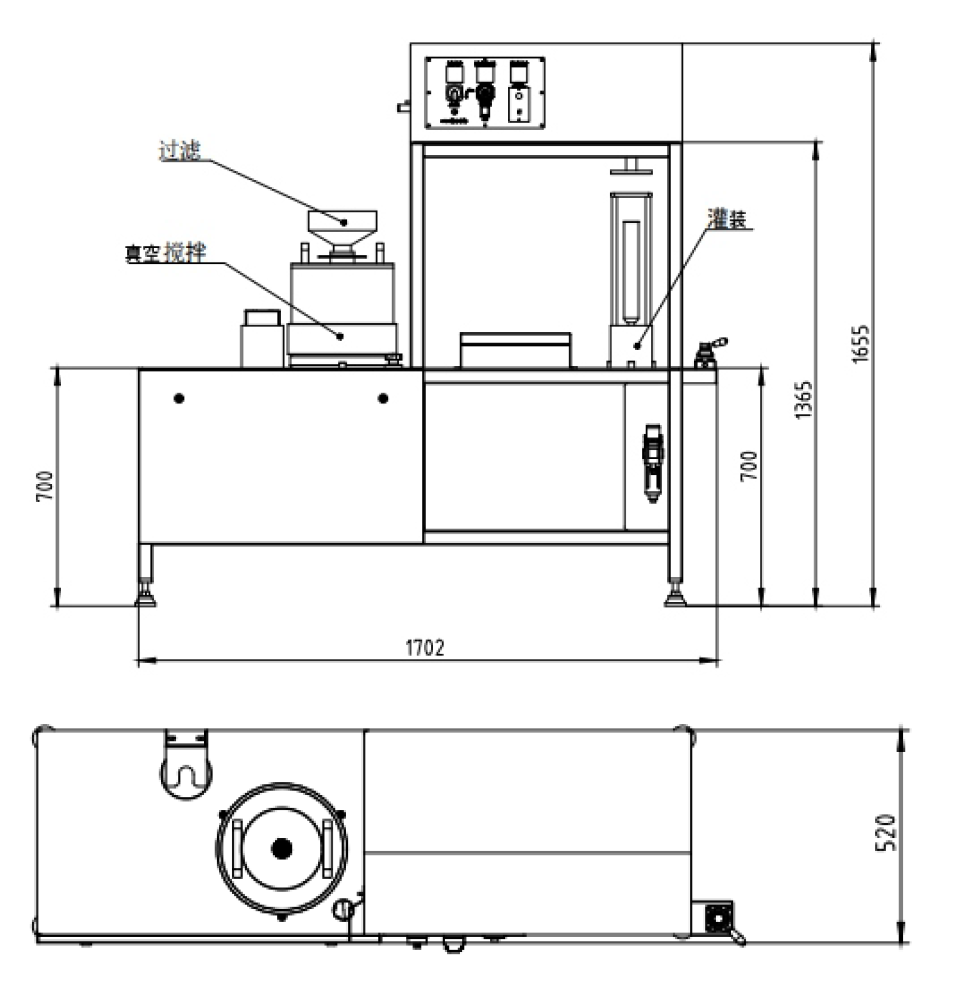

Size	Machine size	L1702W520H1655mm




Notice:‌ Due to product model variations and ongoing technical modifications, ‌device dimensions and configurations may deviate from this specification document‌. This document serves ‌pre-contract reference only‌; final specifications shall be governed by ‌signed contractual agreements
