Board Thickness

Max:10mm          Min:0.12mm

Board Size

Max: 610*810mm          Min: 250*250mm

Plug Through The Aperture ability

0.1- 0.8mm(40:1) No voids or dents

Plug Laser Via＆ability

0.05- 0.2mm(5:1) No voids or dents

2、Specification Of Machine

Printing Speed

0- 600mm/sec  adjustable

Printing Pressure

1- 200KG  adjustable

Vertical Angle Of Squeegee

±15°

Scraping Stroke

0- 730mm  adjustable

Printing Precision

0.02mm( single panel to repeat)

Working Height

1050±30mm

Frame Size

Max:1200*1100mm Min:900*900mm(Grid Framework Height＞4mm)

Table Vacuum Area

800*1000mm

Work Vacuum

40-120pa(Residual pressure in the vacuum printing chamber) Note:1 atm ≡ 101.325 kPa

Ultimate Vacuum

10pa(Residual pressure in the vacuum printing chamber)

Capacity

25- 70PAH(Vary depending on orifice plate characteristics,Aspect Ratio‌30:1- 8:1)

Set- up Time

20- 30min

3、Electrical Equipment

Power

AC380V、3PH、Power 16KW、Power Consumption 8 kWh/h

Cooling Water

5- 15℃、flow≥10L/min

Compressed Air

7- 8kg/cm²、flow≥10L/min

4、Equipment

Weight

6560kg

Outward Appearance

Vacuum special paint

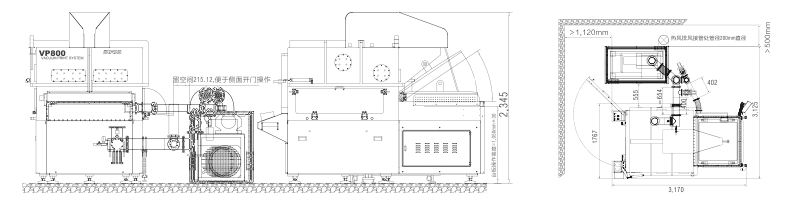

Size

L3170*W3125*H2345mm

Due to product updates, the product specifications in this catalog are subject to the latest physical products.
